WABCO S+ Air Disc Brake Sensor - 4410309102 - 441 030 910 2

Product Description

ABS is an important component of any heavy-duty truck's braking system. Not only does ABS keep wheels grounded, but it helps to prevent lock-up; skidding; and losing control of vehicles.

This S+ sensor kit is installed at wheel ends to measure the motion of a sensed wheel in ABS applications and includes bushing mount. With 12 volts of power, this radial sensor product offers IP 68 / IP 69K ISO 20653 of protection and an operating temperature of -40 to + 185° F. It has a 6.2 millimeter TDR cable with CS wires and a sensor length of S441 032 814 0.

This product's warranty may depend on type and vocation. Please contact our customer service team for more details.

For over 150 years, WABCO continues to be a global supplier of commercial vehicle technologies to maintain safer uptime in a greener environment.

Features

• S+ sensor
• Installed at wheel ends to measure the motion of a sensed wheel in ABS applications
• Bushing mount
• 12 volts
• Radial version
• IP 68 / IP 69K ISO 20653
• Operating temperature of -40 to + 185° F
• 6.2 millimeter TDR cable with CS wires
• Sensor length of S441 032 814 0

Includes

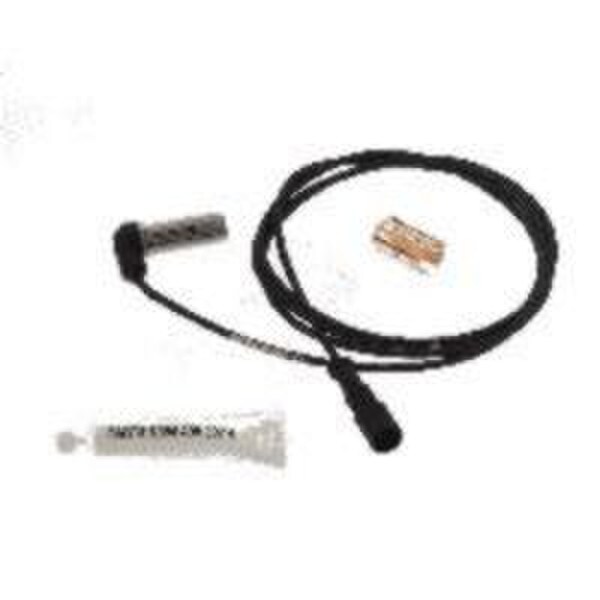

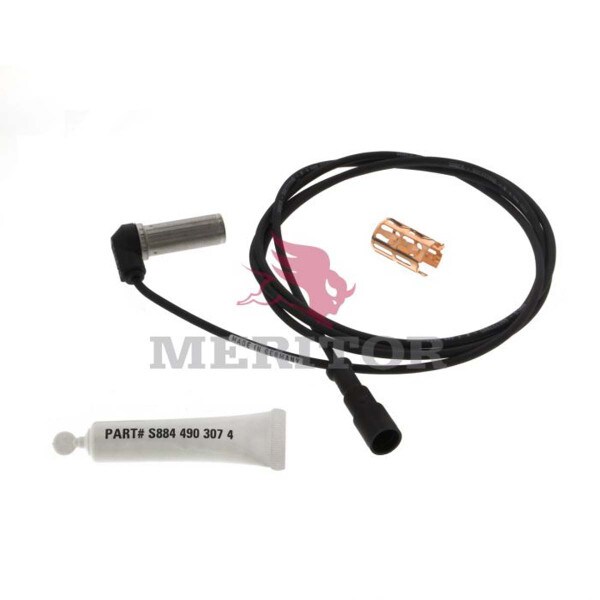

Sensor kits include sensor with cable leads, sensor clip (S899 759 815 4), grease packet (S884 490 307 4) and instruction sheets.

Warranty

This product's warranty may depend on type and vocation. Please contact our customer service team for more details.

Cross Reference

01-01-1034, 01011034, 441 030 910 2, 4410309012, 4410326150, 4410328140, 6300-4410309102, 641288, 650-R955342, 815-4410309102, 8235-R955342, 85106610, 970-5001, APL-101351, AS078WK, GEN2-5342, R955342, R955604, S-22055, S22055, S4410328140, TDAR955342, WAB 441 032 814 0, WAB4410309102
