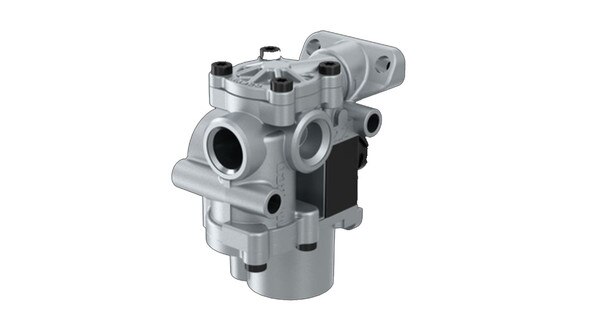

WABCO Solenoid Modulator Valve - 4721950760 - 472 195 076 0

Product Description

Air sensors with debris or metal shavings is one of the leading causes of ABS failure in heavy-duty applications. When it's time to replace ABS components, turn to WABCO for reliable replacement truck parts.

This WABCO Solenoid modulator valve is designed for ABS systems. With air cooling, this 12 volt ABS valve contains Bayonet connectors (DIN 72 585 A1-3.1-Sn/K1) and flap exhaust. Its max operating pressure is 11 bar. Mounting is 2x 8.5 millimeters and distance between holes is 71.0 x 20.0 millimeters. Its port thread sizes are as follow: Port 1 - Flange (24); Port 2.1 - 1/2 "- 14 Dry Seal NPTF. Port threads: 1/2'' - 14NPTF. Its protection class is IP 66 / IP 69K EN 60529 / IEC 529 and temperature range is -40°C to +80°C.

Warranty for WABCO parts depends on the product type and application. Contact us to learn more.

WABCO is an industry leader in safe driving products known for their advancements in ADAS. Trust WABCO when shopping for ADAS and air system components for your heavy-duty truck!

Features

• Distance between holes is 71.0 x 20.0 millimeters
• Port 1 - Flange (24); Port 2.1 - 1/2 "- 14 Dry Seal NPTF. Port threads: 1/2'' - 14NPTF
• Protection class is IP 66 / IP 69K EN 60529 / IEC 529
• Temperature range is -40°C to +80°C

Includes

Solenoid modulator valve

Warranty

Warranty depends on the product type and application.

Cross Reference

4725001209, 4725003200, 6300-4725003200, R950058, R950058NX, R955412, S472-195-076-0, S472-500-320-0, S4721950760, S4721950770, S4725003200, TDAS4721950760, TDAS4725003200, WAB4725003200

Specifications
