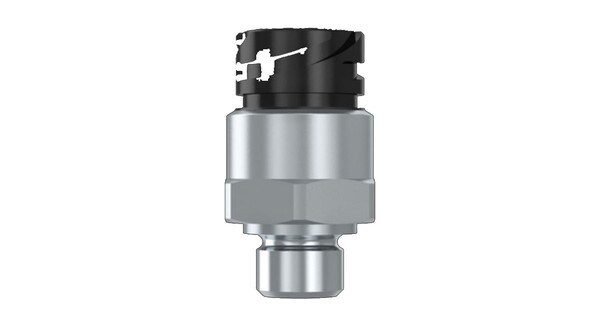

WABCO 24V Pressure Sensor - 4410441010 - 441 044 101 0
Details
Product Description
Air sensors with debris or metal shavings is one of the leading causes of ABS failure in heavy-duty applications. When it's time to replace ABS components, turn to WABCO for reliable replacement truck parts.
This WABCO Pressure sensor is designed for ABS systems. This 24 volt Bayonet Piezo-Resistive pressure sensor with sealing contains a 16 bar max operating pressure with M16 x 1.5 port threads. Protection class is IP6K7/IP6K9K. Temperature range: -40°C to +80°C.
Warranty for WABCO parts depends on the product type and application. Contact us to learn more.
WABCO is an industry leader in safe driving products known for their advancements in ADAS. Trust WABCO when shopping for ADAS and air system components for your heavy-duty truck!
Features
- 24 volts
- Bayonet
- Piezo-Resistive
- 16 bar max operating pressure
- M16 x 1.5 port threads
- Protection class is IP6K7/IP6K9K
- Temperature range: -40°C to +80°C
Includes
Pressure sensor
Warranty
Warranty depends on the product type and application.
Cross Reference
1296494, 1506009, 1738460, 361441560A, 79853970306612, N2255200063, S4410441010, VS70000146
Specifications
| Brand | wabco |
| Supersedes | S4410441010 |
| MPN | 4410441010 |
| UOM Quantity (Per Unit of Measure) | 1 |
| Unit of Measure (case, ea, drum, etc.) | each |
| Benefits | This WABCO Pressure sensor is designed for ABS systems. This 24 volt Bayonet Piezo-Resistive pressure sensor with sealing contains a 16 bar max operating pressure with M16 x 1.5 port threads. Protection class is IP6K7/IP6K9K. Temperature range: -40°C to +80°C. |
