Horton Mack CT DM Reman Fan Clutch - 79A9487-2

Product Description

Your engine needs to stay at an optimal cooling temperature to avoid overheating. For this, engines rely on active fan clutches to perform the job. If your semi truck is showing signs of overheating or with decreased power, it could be signs of a failing fan clutch. When in need of fan clutch replacement, turn to Horton!

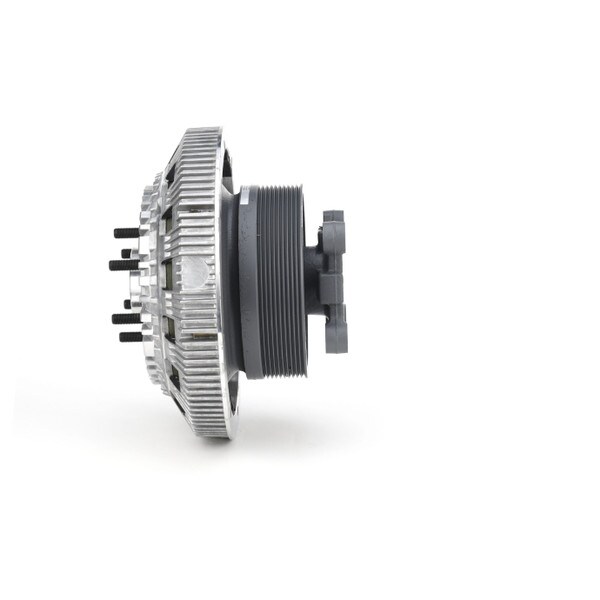

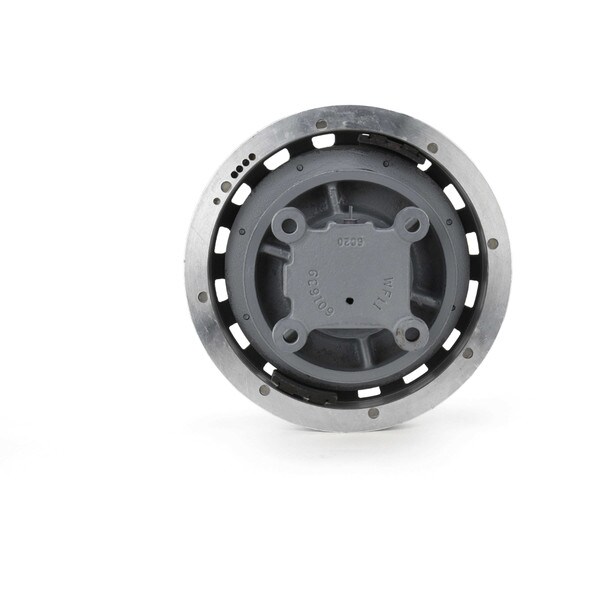

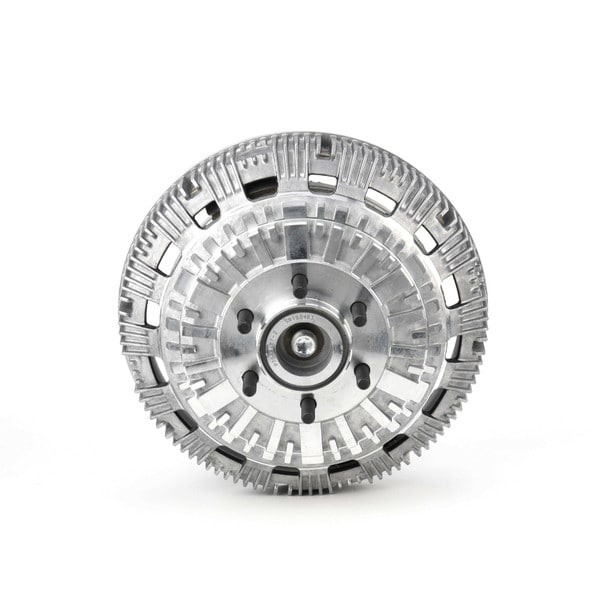

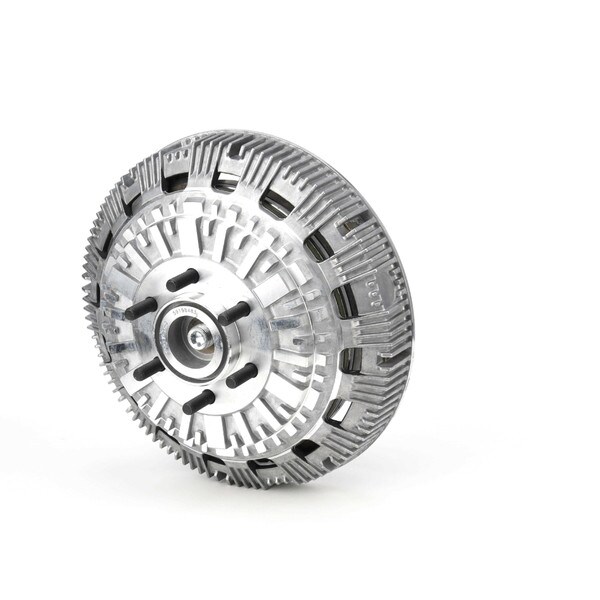

This DM Advantage Two-speed reman fan clutch is designed for Mack (2006-07) CT Fusion, CX Fushion vehicles with MP7 engines. It offers a bolt circle dimension of 3.5 inches; a stud length of .81 and a pilot diameter of 2.56 inches. It contains a back pulley diameter measurement of 6.46 inches. Its belt configuration is a 10K with a belt groove location of 1.48. Its vertical mounting distance measures 3.27 inches and its horizontal mounting distance measures 3.63 inches. Center of JB to top right mounting hole is 1.63 inches.

This part comes with a 12-36 month warranty depending on vocation and product type.

Since 1951, Horton has been one of the leading suppliers of quality engine-cooling systems for OEM applications and commercial vehicles. Trust Horton for reliable aftermarket truck engine components!

Features

• Designed for Mack (2006-07) CT Fusion, CX Fushion vehicles with MP7 engines
• Bolt circle dimension of 3.5 inches
• Stud length of .81
• Pilot diameter of 2.56 inches
• Back pulley diameter measurement of 6.46 inches
• Belt configuration is a 10K
• Belt groove location of 1.48
• Vertical mounting distance measures 3.27 inches
• Horizontal mounting distance measures 3.63 inches
• Center of JB to top right mounting hole is 1.63 inches

Includes

DM Advantage Two-speed reman fan clutch

Warranty

12-36 months depending on vocation and product type

Cross Reference

85125681, 40MH432AM, 20862259
