WABCO 1 Millimeter Twin Air Dryer - 4324330360 - 432 433 036 0

Product Description

ABS is an important component of any heavy-duty truck's braking system. Not only does ABS keep wheels grounded, but it helps to prevent lock-up; skidding; and losing control of vehicles.

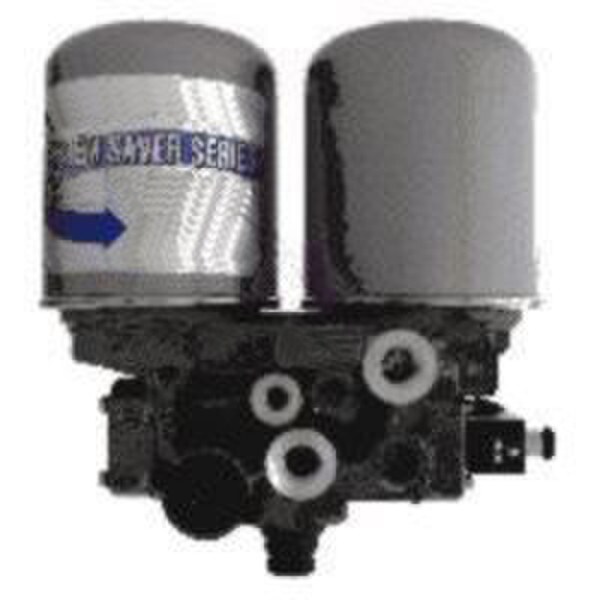

This 1 millimeter twin air dryer contains a desiccant and oil separator cartridge with a JED-463-0 exhaust; a max operating pressure of 13 bar and an opening pressure of 11 bar. The 12 volt unit has a temperature range of -40°C to +65°C and a calculated volume of 27.148. Port thread measurements are as follow: Ports 11 and 21: 1/2" - 14 NTPF; Port 3: JED-463-0; Port 4/23: 1/4" - 18 NPTF.

This product's warranty may depend on type and vocation. Please contact our customer service team for more details.

For over 150 years, WABCO continues to be a global supplier of commercial vehicle technologies to maintain safer uptime in a greener environment.

Features

• JED-463-0 exhaust
• Max operating pressure of 13 bar
• Opening pressure of 11 bar
• Temperature range of -40°C to +65°C
• Calculated volume of 27.148
• Ports 11 and 21: 1/2" - 14 NTPF; Port 3: JED-463-0; Port 4/23: 1/4" - 18 NPTF

Includes

1.0 mm. SS Twin Air Dryer

Warranty

This product's warranty may depend on type and vocation. Please contact our customer service team for more details.

Cross Reference

2608376C91, 4324330069, 4324330360, 6300-4324330360, 8235-S4324330360, S432-433-036-0, S4324330360, TDAS4324330360

Specifications
