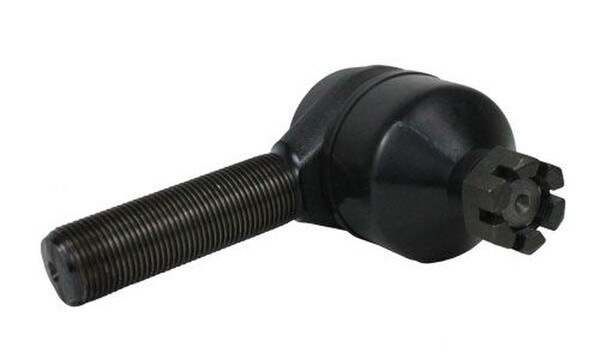

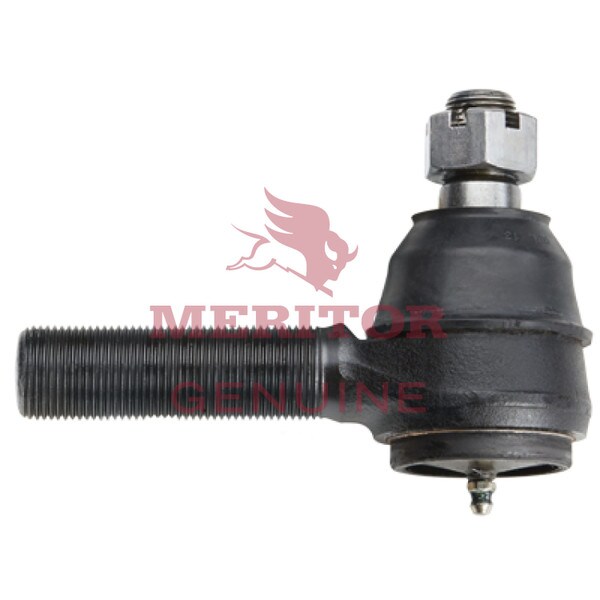

Meritor Genuine TIEROD END - R230128
Details
Product Description
FRONT AXLE - TIE ROD END
Warranty information may be based on the product and application. Please contact us for additional information.
For years now, Meritor has been at the forefront of the trucking industry, and the Meritor Genuine TIEROD END - R230128 is the ideal way to make sure you have the replacement part you've been looking for.
Features
- Large Taper Diameter: 1.102 in.
- Notes: H.D. version of R230069
- Rod Thread Diameter: 1.125 in.
- Rod Thread Direction: RH
- Rod Threads per Inch: 12
- Small Taper Diameter: 0.967 in.
- Stud Center to Rod End: 5.44 in.
- Stud Thread Diameter: 0.875 in.
- Stud Threads per Inch: 14
- Style: Curbside
- Taper Length: 1.08 in.
Includes
Meritor Genuine TIEROD END - R230128
Warranty
Warranty information may be based on the product and application. Please contact us for additional information.
Cross Reference
002914-1, 002914-2, 00698571, 00698572, 02-7092084, 02-7092085, 02206AB, 027092084, 027092085, 1006146, 1006147, 1006148, 1006149, 10328, 11987, 11988, 120TR109, 120TR110, 124X11, 128177, 128178, 140TR109, 140TR110, 142209, 149517, 15510849, 15515804, 15515805, 1658964C91, 1668407C91, 1668408C91, 1681456C91, 1681457C91, 171174, 17303H, 184702, 192820, 1AH0315, 1BAH0315, 20-2610, 2010021, 202-0014, 202610, 21-423L, 21-423R, 2137305, 21423L, 21423R, 2339263548, 2505180C91, 2505181C91, 2506331C91, 2512822C1, 2512823C1, 2597151, 2597250, 2599033, 2604283C91, 2604284C91, 262-1572, 262-1592, 262-1593, 2621572, 2621592, 2621593, 2652044, 269-2243, 269-2244, 269-2945, 269-3039, 269-3040, 2692243, 2692244, 2693039, 2693040, 27092084, 27092085, 2719-817018, 2719-817019, 2719817018, 2719817019, 29141, 29142, 2B9049, 2B9049T, 2R200195, 2R230068, 2R230069, 2R230127, 2R230128, 2R230139, 2R230145, 300-232, 300-242, 300232, 300242, 30068, 30069, 306166, 310-222, 310-223, 310-455, 310-456, 310-483, 3101W179, 310222, 310223, 310455, 310456, 310483, 312194, 3144D524, 3217L, 339TR113, 339TR114, 3601790000, 3601800000, 37004-5014, 370045014, 37019, 37020, 37024-0004, 37024-0005, 37024-4410, 37024-4411, 37024-5010, 37024-5011, 370240004, 370240005, 370244410, 370244411, 370245010, 370245011, 37025-0004, 37025-0005, 370250004, 370250005, 37090-5000, 37090-5018, 370905000, 370905018, 3744496, 3744497, 376001, 376002, 384614, 384615, 390808C91, 3948208, 3948236, 3948883, 3948884, 3A130, 3A131, 401-1608, 401-1701, 401-1702, 41019-BLW, 41019BLW, 41020-BLW, 41020BLW, 4107862, 4108001, 4279527, 4279535, 42869, 438368C91, 438369C91, 4468B, 45A0608, 45A0701, 45A0702, 460.204B, 460204B, 461671C91, 461672C91, 462.ES3442R, 462.ES423L, 462.ES423LI, 462.ES423R, 462.ES423RI, 462.ES9001L, 462.ES9001LI, 462.ES9001R, 462.ES9001RI, 462ES3283R, 462ES3297R, 462ES3442R, 462ES423L, 462ES423LI, 462ES423R, 462ES423RI, 462ES431L, 462ES431R, 462ES9001L, 462ES9001LI, 462ES9001R, 462ES9001RI, 4C4O3A130LA, 4C4O3A130MA, 4C4Z3A130LA, 4C4Z3A130MA, 4SV5042A12, 4SV5043A12, 50.931.12, 507837C91, 507837C92, 507838C91, 507838C92, 507857C91, 5093112, 5200358, 5200366, 5200754, 5203287, 5207149, 5210758, 5210761, 534-611, 534-612, 542D2, 549800C91, 54980OC91, 555ST, 56ES423L, 56ES423R, 597556C91, 60961027, 60961028, 60961085, 60961086, 61110153, 61110154, 62714, 62AX157, 62AX167, 64000, 64000-001, 64000-002, 64000001, 64000002, 64002-002, 64002001, 64002002, 65034-002, 65034001, 65034002, 685365, 685366, 692243, 698571, 698572, 70.931.12, 7093112, 729374107336, 729374237736, 802423L, 802423R, 808-563B, 808563B, 817018, 817018ETN, 817019, 817019ETN, 820643, 8235-R200195, 8235-R230068, 8235-R230069, 8235-R230139, 8235-R230140, 8235-R230145, 8235KIT195, 8235R200195, 8235R230068, 8235R230069, 8235R230139, 8235R230140, 8235R230145, 827426, 84001015, 84001016, 85102466, 85102489, 85102535, 85112006, 85112007, 8590B, 8611B, 8611C, 8616C, 90003919, 90003920, 9001L, 9001R, 90698, 91562, 91563, 95X555S, 95X58, 970701, 970702, 9B092, A3144D524, A3144E524, A3144E525, A3144F526, A3144N1132, A3144N456, A3144P1134, A3144P458, A3144T1190, A3144U1191, A555S, AKP-9822, AKP9822, APL-100613, ARE-9893, ARE-9894, ARE9893, ARE9894, ARE9988, ARE9989, ATIR200195, ATIR230068, ATIR230069, AU370240004, AU370240005, AUL24SV5042A12, AUL24SV5043A12, B5590, BA21423L, BA21423R, BAE4614, BAE4615, BES423L, BES423R, BF823, BT555S, BWP M-4270, BXA4831, C5TA-1216A, C5TZ-1216A, CE4614, CE4615, CS3744496, CS3744497, CSL24SV5042A12, CSL24SV5043A12, CV15515804, CV15515805, CV698571, CV698572, CVL24SV5042A12, CVL24SV5043A12, D0HZ-3A130-A, D0HZ-3A130D, D0HZ-3A131D, D0HZ3A130A, D0HZ3A130D, D0HZ3A131A, D0HZ3A131D, DAY310222, DLA3144D524, DLA3144E525, DLR230068, DLR230069, DN306166, DN310222, DN310223, DOHZ3A130A, DOHZ3A130D, DOHZ3A131A, DOHZ3A131D, DP306166, DP310222, DP310223, DP310455, DP310456, DS140TR109, DS140TR110, DS817018, DS817019, DTN310222, DZSP692244, E-10137, E-10138, E-11788, E-11987, E-11988, E-4468B, E-4614, E-4615, E-4694C, E-9949, E0ADKN-4622, E10137, E10138, E11003, E11004, E11788, E11987, E11988, E3HZ-3A130-A, E3HZ3A130A, E3HZ3A131A, E4468B, E4614, E4615, E4694C, E4HZ-3A130-A, E4HZ-3A130-B, E4HZ3A130A, E4HZ3A130B, E4HZ3A131A, E4HZ3A131B, E9949, E9988, E9989, EA1006148, EA1006149, EAETN817018, EAETN817019, EAL24SV5042A12, EAL24SV5043A12, EATE2029, EATE2030, ECE4614, ECE4615, ECTE2029, ECTE2030, ECX4614, ECX4615, EE4614, EE4615, EFD0HZ3A130A, EFD0HZ3A131A, EIE4614, EM99880, EM99890, ES-423L, ES-423R, ES3041R, ES3042L, ES3217L, ES3218R, ES3442R, ES3476, ES3476-77LR, ES347677LR, ES3477, ES423L, ES423LR, ES423R, ES9001L, ES9001R, ETETN817018, ETETN817019, ETN817018, ETN817019, EU729374107336, EU729374237736, EUCE4614, EUCE4615, EUE4468B, EUE4614, EUE4615, EUE9950, EUEE4614, EUEE4615, F ES423R, F555S, F5HZ3A130AA, F6ES423L, F6ES423R, F6HZ3A130AA, FAK4555, FAK4561, FAK4564, FEA3144D524, FEA3144E525, FEL24SV5042A12, FEL24SV5043A12, FGES423L, FGES423R, FJES423L, FJES423R, FKP-90-B, FKP-97-C, FKP90B, FKP97C, FLAES423L, FLAES423R, FLES3217L, FLES423L, FLES423R, FLES9001L, FLES9001R, FLT3217L, FLT3218R, FLTDAR230068, FLTDAR230069, FLTKP4555, FLTTR3217L, FLTTR3218R, FLTTR3476, FLTTR3477, FLTTR423L, FLTTR423R, FMES3217L, FMES423L, FMES423R, FOE3HZ3A130A, FOE3HZ3A131A, FOE4HZ3A130A, FOE4HZ3A130B, FOE4HZ3A131A, FPES423L, FPES423R, FT7024, FTR3476, FTR3477, FTR423L, FTR423LA, FTR423R, FTR423RA, FTR8407, FTR8408, FVETN817018, FVETN817019, FVTDAR230068, G15515084, G698571, GHE4614, GHE4615, GHE9950, GM698572 21-423R, H1006148, H1006149, H140TR109, H140TR110, H64002001, H64002002, HD64000001, HES3218R, HES3442R, HES423L, HES423R, HKP2270, HKP2375, HKP2930, HKP2975, HRR200195, HRR230068, HRR230069, HTSR0029141, HTSR0029142, HUD64000001, HUD64000002, HZ3A130A, HZ3A130B, HZ3A131A, HZ3A131B, K3A3144D524, K3A3144E525, K4555, K4561, K4564, K563B, K576C, K7093112, K931L, KA321, KA7093112, KAK931L, KB563B, KB823, KB839, KB839CB, KE7093112, KEK931L, KI7093112, KIT195, KK931L, KP2327, KP2338, KP3038, KPK1117, KPK1119, KQ7093112, KQK931L, KWL24SV5042A12, KWL24SV5043A12, L20SV5180B14, L20SV8100B12, L20SV8100B13, L20SV8100D12, L20SV8100D13, L20SV8101C12, L20SV8101C15, L20SV8101D12, L20SV8101D15, L20SV8102D12, L20SV8102D19, L20SV8103D12, L20SV8103D21, L20SV8107C12, L20SV8150A13, L20SV8150B14, L20SV8150B16, L20SV8151A13, L20SV8151B14, L20SV8151B16, L24SV4000H11, L24SV4000H12, L24SV4001H14, L24SV5042A12, L24SV5042A14, L24SV5042B12, L24SV5043A12, L24SV5043A14, L24SV5043B12, L24SV5043B13, L24SV7002C12, L24SV7003B12, L24SV8000C20, L24SV8000E13, L24SV8001D20, L24SV8001E13, L24SV8101E12, L24SV8101E16, L24SV8101E19, L24SV8101K12, M-2348, M-2381, M-4269, M-4270, M-4273, M-4274, M2300232, M2310455, M2310456, M2348, M2381, M2ES423L, M2ES423R, M4269, M4270, M4273, M4274, M5A3144D524, M5A3144E525, M8590B, MCES423L, MCES423R, MERR230068, MERR230069, MES423L, MES423R, MMA3144D524, MMA3144E525, MML24SV5042A12, MML24SV5043A12, MODS1287, MQES423L, MQES423R, MSE4614, MSE4615, MSK931L, MSKQK931L, MSR4R230068, MSZZE4614, MSZZE4615, MTRR230139, MW423L, MW423R, MW9001L, MW9001R, N310222, N817018, N817019, NV438368C91, NV438369C91, NV507837C91, NV507838C91, NVFTR423L, NVFTR423R, NVL24SV5042A12, NVL24SV5043A12, OSES423L, OSES423R, OTR201371, OTR201381, OTR26141, OTR26151, P-11003-BLW, P-11004-BLW, P-11987, P-11987-BLW, P-11988, P-11988-BLW, P02692243, P02692244, P11003BLW, P11004BLW, P11987, P11987BLW, P11988, P11988BLW, PAARE9988, PAARE9989, PAI9988, PAI9989, PAL9989, PBL24SV5042A12, PBL24SV5043A12, PP26141, PWR230068, PWR230069, QTE967L, QTE967R, R-002914-1, R-002914-2, R-003000-1, R-003000-2, R0029141, R0029142, R0030001, R0030002, R200195, R200195-RI, R200195RI, R201307, R201370, R202014, R203014, R230068, R230068-RI, R230068RI, R230069, R230069-RI, R230069RI, R230127, R230139, R230140, R230145, R230413, R230414, R423L, R423R, R4R230068, R4R230069, RAR230068, RAR230069, RAR230145, RBA3144E525, RBR230068, RBR230069, RBTDAR230068, RBTDAR230069, RIA3144N456, RIA3144P458, RIR230068, RIR230069, RKA3144N456, RKA3144P458, ROR230068, RSR230068, RSR230069, RWA3144D524, RWA3144E525, RWTDAR230068, RWTDAR230069, S-6948, S-6964, S-7357, S-7358, S-D639, S-D640, S-E394, S-E395, S-F305, S423L, S423R, S6948, S6964, S7357, S7358, S7S7357, S7S7358, SC802423L, SC802423R, SD639, SD640, SE394, SE395, SES-423L, SES-423R, SES-9001L, SES-9001R, SES423L, SES423R, SES9001L, SES9001R, SF2692243, SF2692244, SF305, SFSP692243, SFSP692244, SL802423L, SL802423R, SP621572, SP692243, SP692244, SP817018, SP817019, SPI-817018, SPI-817019, SPI-KPK1117, SPI817018, SPI817019, SPIKPK1117, TDAA3144D524, TDAA3144E525, TDAA3144N1132, TDAA3144P1134, TDAA3144T1190, TDAA3144U1191, TDAR200195, TDAR230068, TDAR230069, TDAR230127, TDAR230128, TDAR230139, TDAR230140, TDAR230145, TDAR230146, TDSR230068, TDSR230069, TE11003, TE11004, TE11987, TE11988, TE11988LBH, TE2029, TE2030, TI555S, TK551, TK569, TR310222, TR310223, TR423L, TR423R, TRE11003, TRE11004, TRE11987, TRE11988, TRE3442R, TRE3476R, TRE3477L, TRE4614, TRES423L, TRES423R, TRL24SV5043A12, TRW ES423R, TRWES423L, TRWES423R, TW310222, TW310223, TWES423L, TWES423R, UMTR423L, UMTR423R, V1091562, V1091563, V109563, V1112811, V1112812, VO370245010, VO370245011, VOA3144D524, VOA3144E525, VOL24SV5042A12, VOL24SV5043A12, VOV1091562, VOV1091563, VW7093112, VWK7093112, VWK931L, VWKK931L, VZ370240004, VZ370240005, WA423L, WA423R, WAK563B, WES423L, WES423R, X4614, X4615, XBA3144D524, XBA3144E525, XXK931L, Y310222, ZBP0817018, ZBP0817019, ZZE4614, ZZE4615
Specifications
Width | 5961 |
Height | 5960 |
Style | 2397 |
Length | 5962 |
Direction | RH |
Brand | Meritor Genuine |
Center To End | 5.44 in. |
MPN | R230128 |
UPC | 680502140635 |
Color | Black |
Width | 6.9 in. |
VMRS | 011-001-031 |
UOM Quantity (Per Unit of Measure) | 1 |
Unit of Measure (case, ea, drum, etc.) | each |
Type / Style | Type 1 |
Height | 3.45 in. |
Benefits | TIEROD END |
