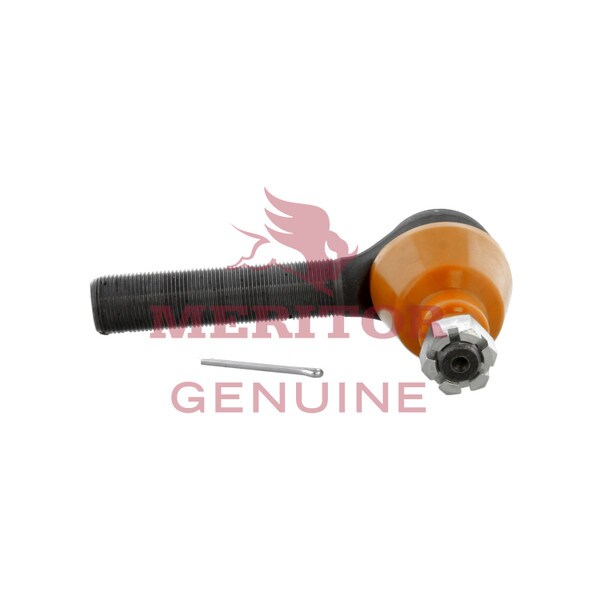

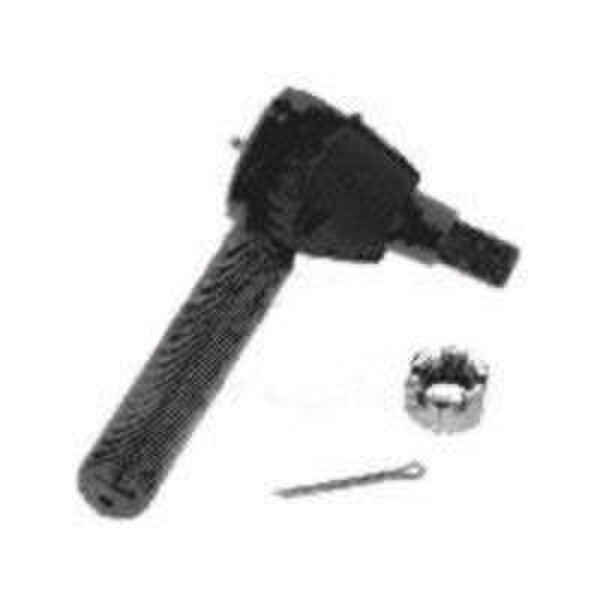

Meritor Genuine TIE ROD END - R230073

Product Description

FRONT AXLE - TIE ROD END

Warranty depends on application and product type. Contact us for more information.

Meritor is a world leader of air brake, suspension, and drivetrain system parts for on-and-off highway vehicles. When in need of replacement truck parts, choose to buy from one of the best - Meritor!

Features

• Industry Number: ES2091R
• Large Taper Diameter: 1.25 in.
• Notes: Zerk on bottom
• Rod Thread Diameter: 1.25 in.
• Rod Thread Direction: RH
• Rod Threads per Inch: 12
• Small Taper Diameter: 1.08 in.
• Stud Center to Rod End: 7.37 in.
• Stud Thread Diameter: 0.875 in.
• Stud Threads per Inch: 14
• Style: Curbside
• Taper Length: 1.36 in.
• Type: 1

Includes

TIE ROD END

Warranty

Warranty depends on application and product type. Contact us to learn more.

Cross Reference

10-QH-248P5, 10QH248P3, 10QH248P4, 10QH248P5, 10QH248P6, 10QH310P1, 10QH311, 10QH311P1, 10QH312, 10QH312P1, 10QH39, 10QH39P1, 12011-BNW, 12011BNW, 12012-BNW, 12012BNW, 12541319, 12541320, 12969, 12970, 1300383, 1300391, 143640-005, 143640005, 15584419, 15584420, 1654912C91, 1660295, 1660296, 1663000C91, 1668479C91, 1668480C91, 1677271C91, 18QK214P2, 18QK23A, 18QK29301, 1J-2-58, 1J258, 1QH312, 2005676, 2041L, 2075447, 2090L, 2091R, 21-2090L, 21-2091R, 21-2115R, 21-2204R, 21-2209R, 21-2210L, 21-3030R, 21-3031L, 21-3033L, 21-303OR, 21-431L, 21-431R, 2113R, 2114R, 2115R, 212033L, 212041L, 212090L, 212091R, 212115R, 212202R, 212204R, 212209R, 212210L, 213030R, 213031L, 213033L, 213034R, 21303OR, 21376L, 21376R, 21431L, 21431R, 2204R, 220TR116, 220TR117, 220TR118, 220TR119, 2210L, 2452860, 2452861, 2456860, 25005676, 25009276, 25020925, 269-2158, 269-2159, 269-2311, 269-2485, 269-2486, 269-2644, 269-2645, 269-2710, 2692158, 2692159, 269228, 2692311, 2692312, 2692446, 2692447, 2692485, 2692486, 2692644, 2692645, 2692698, 2692710, 2695098, 2719-220TR118, 2719-818471, 2719220TR118, 2719818471, 289-00-010, 28900010, 2R230070, 2R230072, 2R230073, 2R230104, 30023, 30041, 30052, 30055, 30070, 30071, 30072, 30073, 30091, 30092, 30104, 30105, 3031L, 310-228, 310-229, 310-283, 310-284, 310-316, 310-318, 310-323, 310-324, 310-395, 310-396, 310-397, 310-398, 310-425, 310-433, 310-434, 310-460, 310-463, 310188, 310189, 310228, 310229, 310233, 310268, 310269, 310283, 310284, 310316, 310318, 310323, 310324, 310395, 310396, 310397, 310398, 310424, 310425, 310433, 310434, 310460, 310463, 3144-F-448, 3144-G-449, 3144F448, 3144G449, 32022, 32023, 3310316, 340245002, 3613900000, 363272, 363273, 3634206, 3634207, 37003-5029, 37003-5030, 370035029, 370035030, 37014-5016, 370145016, 37024-4403, 37024-5001, 37024-5002, 37024-5016, 370244403, 370245001, 370245002, 370245016, 37190-3406, 371903406, 3919225, 3945962, 4300273, 442354C91, 442354C92, 462.ES2090L, 462.ES2090LI, 462.ES2091R, 462.ES3030L, 462.ES3030R, 462.ES3033L, 462.ES431R, 462.ES431RI, 462.ES431RL, 462.ES4601L, 462.ES4601R, 462ES2090L, 462ES2090LI, 462ES2091R, 462ES3030L, 462ES3030R, 462ES3031L, 462ES3033L, 462ES431R, 462ES431RI, 462ES431RL, 462ES4601L, 462ES4601R, 486354C91, 486355C91, 486355C91F, 486355R91, 50552793, 506684C91, 5205150, 5207095, 56ES2040R, 56ES2090L, 56ES2091R, 56ES376L, 581063C91, 590583C91, 590584C91, 61320603, 61320607, 685504, 686355C91, 692644, 700042, 729374160607, 729374228000, 798203, 798204, 8022113R, 8022114R, 8022115R, 802431L, 802431R, 818471, 818472, 82-10507, 820625, 820626, 820627, 820694, 820695, 8210507, 8235-R230070, 8235-R230071, 8235-R230072, 8235-R230104, 8235R230070, 8235R230071, 8235R230072, 8235R230104, 838308B, 839307B, 839308B, 85106954, 85112008, 85112009, 887783A, 887784A, 88936085, 8SV5001A18, 8SV5004D1, 9091R, 9631R230072, 9631R230104, 969055R91, 969056R91, 99500, A3144A547, A3144C549, A3144D394, A3144D549, A3144D550, A3144F448, A3144G449, A3144J296, A3144K296, A3144K297, A3144S1137, A3144T1138, A3144U437, A3144U438, A3144V437, A3144V438, A3144Z546, A3144Z547, APL-100597, ARE-9950, ARE-9986, ARE-9987, ARE-9990, ARE9950, ARE9986, ARE9987, ARE9990, ARE9991, ATIR230072, ATIR230104, AU887783A, AU887784A, BA212041L, BA212115R, BA21376L, BA21376R, BA21431L, BA21431R, BAE4616, BAE4617, BES431L, BES431R, CE4616, CE4617, CS3634206, CS3634207, CV2452860, CV2452861, D0H3A130B, D0HZ3A130B, D0HZ3A130C, D0HZ3A131B, DAY310228, DAY310229, DLA3144J296, DLA3144K297, DLR230022, DLR230023, DLR230041, DLR230071, DLR230104, DLR230105, DN310228, DN310229, DN310233, DN310283, DN310284, DN310323, DN310395, DN310396, DN310424, DN310425, DN310433, DN310434, DP310188, DP310189, DP310228, DP310229, DP310268, DP310269, DP310283, DP310284, DP310395, DP310396, DP310424, DP310425, DZSP692645, E-4616, E-4617, E-4618, E-4628, E-4629, E-5471, E-6856, E-6857, E-9877, E-9880, E-9955, E12003, E12004, E12011, E12012, E12040, E12969, E12970, E4616, E4617, E4618, E4628, E4629, E5393, E5471, E6824, E6856, E6857, E9877, E9879, E9880, E9950, E9955, E9979, E9986, E9990, E9991, EATE2021, EATE2022, ECE4616, ECE4617, ECTE2021, ECTE2022, ECTE2043, ECTE2044, ECTE2453, ECX4616, ECX4617, EE4616, EE4617, EM99500, EM99870, EM99900, ES-2115R, ES-3034R, ES2040R, ES2041L, ES2090-91LR, ES209091LR, ES2090L, ES2091R, ES2091RI, ES2113R, ES2114R, ES2115R, ES2116L, ES2202R, ES2204R, ES2207R, ES2209R, ES2210L, ES3029L, ES3030-31LR, ES303031LR, ES3030R, ES3031L, ES3033L, ES3034R, ES3056, ES3057, ES3144R, ES346L, ES376L, ES376R, ES431L, ES431LR, ES431NR, ES431R, ES9091R, ETN818471, EU729374160607, EU729374228000, EUCE4616, EUCE4617, EUE4616, EUE4617, EUE4628, EUE4629, EUE5393, EUE6856, EUE6857, EUE9877, EUE9879, EUEE4616, EUEE4617, EXEM99500, EXEM99900, F6ES2040R, F6ES2041L, F6ES2113R, F6ES2114R, F6ES2115R, F6ES376L, F6ES376R, F6ES431L, F6ES431R, FEA3144J296, FEA3144K297, FEL28SV5004D1, FGES2113R, FGES2114R, FGES2115R, FGES3030R, FGES431L, FGES431R, FJES431L, FJES431R, FLDS1289, FLES2040R, FLES2041L, FLES2090L, FLES2091R, FLES3030R, FLES3031L, FLES376L, FLES376R, FLES431L, FLES431R, FLT3030R, FLT431R, FLTTR2090L, FLTTR2091R, FLTTR3030R, FLTTR3031L, FLTTR3033L, FLTTR3034R, FLTTR431R, FMES2090L, FMES2091R, FMES2114R, FMES2116L, FMES3030R, FMES431L, FMES431R, FPES2090L, FPES2091R, FPES431L, FPES431R, FTR 2202R, FTR 2204R, FTR2040R, FTR2090L, FTR2091R, FTR2113R, FTR2114R, FTR2115R, FTR2202R, FTR2204R, FTR2204RA, FTR2209R, FTR2210L, FTR3030R, FTR3030RA, FTR3031L, FTR3031LA, FTR3033L, FTR3034R, FTR3056, FTR3057, FTR3302R, FTR376L, FTR376R, FTR431L, FTR431R, FVTDAR230073, GHE4616, GHE4617, GHE5393, GHE6856, GHE6857, GISP692235, HES2090L, HES2091R, HES3030R, HES3031L, HES3033L, HES431L, HES431R, HRR230070, HRR230072, HRR230104, K3A3144J296, K3A3144K297, L24-SV-8209-A12, L24SV8100A13, L24SV8100B13, L24SV8100J22, L24SV8101A15, L24SV8101A21, L24SV8101A23, L24SV8101C22, L24SV8102C12, L24SV8102C13, L24SV8103C12, L24SV8103C13, L24SV8104B14, L24SV8105B12, L24SV8107A12, L24SV8107B12, L24SV8110D12, L24SV8112A14, L24SV8200B21, L24SV8201A13, L24SV8201A18, L24SV8201J21, L24SV8202D16, L24SV8203A12, L24SV8203B12, L24SV8203B16, L24SV8205C12, L24SV8207A12, L24SV8209A12, L24SV8209B12, L24SV8210A13, L24SV8211B12, L24SV8454A14, L24SV8454A16, L24SV8454A19, L24SV8455A14, L24SV8455A16, L24SV8455A19, L28SV5000A12, L28SV5000A14, L28SV5000A18, L28SV5000A29, L28SV5000G15, L28SV5000H32, L28SV5001A13, L28SV5001A18, L28SV5001A29, L28SV5003B18, L28SV5004D1, L28SV5111A11, L28SV5200A12, L28SV5200D12, L28SV5201A12, L28SV5201D12, L28SV5201D16, L28SV5202A1, L28SV5202A11, L28SV5202A16, L28SV5203A1, L28SV5203A13, L28SV5207B11, L28SV5207B16, L28SV5211B23, L28SV5216A14, L28SV5275A12, L28SV5276A12, L28VT5493A11, M-4272, M-4275, M-4276, M-4281, M2ES2090L, M2ES2091R, M2ES2202R, M2ES303OR, M2ES3056, M2ES431R, M3186L, M4272, M4275, M4276, M510QH310P1, M510QH39P1, M518QK23A, MCES431R, MES431R, MK18QK29301, MMA3144J296, MMA3144K297, MODS1289, MQES2040R, MQES2041L, MQES2113R, MQES2114R, MQES2115R, MQES376L, MQES376R, MQES431L, MQES431R, MSE4617, MTRR230072, MTRR230073, MVES2090L, MVES2114R, MVES2115R, MVES431L, MVES431R, MW2090L, MW2091R, MW3030R, MW3031L, MW431R, NABI6300809, NV969055R91, NV969056R91, NVFTR2040R, NVFTR2113R, NVFTR2114R, NVFTR2115R, NVFTR3057, NVFTR376L, NVFTR376R, NVFTR431L, NVFTR431R, OSES2040R, OSES2041L, OSES376L, OSES376R, OSES431L, OSES431R, OTR26161, OTR26171, OTR26281, OTR26291, P-12969-BLW, P-12970-BLW, P0269228, P02692311, P02692312, P02692446, P02692447, P02692486, P02692644, P02692645, P12969BLW, P12970BLW, PA9950, PA99500, PA9979, PA9986, PA9990, PAARE9950, PAARE9979, PAARE9986, PAARE9990, PAARE9991, PAEM99500, PAEM99900, PRSP692644, QTE108L, QTE108R, R-230213, R2040R, R2113R, R2114R, R2115R, R230022, R230023, R230041, R230050, R230052, R230055, R230066, R230067, R230070, R230070-RI, R230070RI, R230071, R230072, R230072-RI, R230072RI, R230076, R230091, R230092, R230093, R230102, R230103, R230104, R230104-RI, R230104RI, R230105, R230114, R230133, R230134, R230213, R230214, R3057, R376L, R376R, R431L, R431R, R4R230022, R4R230041, R4R230052, R4R230055, R4R230070, R4R230071, R4R230072, R4R230073, R4R230091, R4R230092, R4R230104, R4R230105, RAR230070, RAR230071, RAR230072, RAR230073, RAR230104, RAR230105, RBR230066, RBR230067, RBR230070, RBR230071, RBR230104, RBR230105, RBTDAR230072, RBTDAR230073, RBTDAR230104, RBTDAR230105, RDR230104, RGTL24SV8103C12, RIR230022, RIR230023, RIR230070, RIR230071, RKA3144J296, RKA3144K297, ROR230022, ROR230023, ROR230071, ROR230104, ROR230105, RSR230070, RSR230071, RSR230072, RSR230073, RWA3144J296, RWA3144K297, RWR230072, RWTDAR230073, S-5048, S-5049, S-5988, S-6659, S-B230, S-B231, S431L, S431R, S4760, S5048, S5049, S5988, S6659, SB230, SB231, SC802431R, SES-3030R, SES-3031L, SES-431R, SES3030R, SES3031L, SES431R, SF2692311, SF2692645, SFSP692311, SFSP692645, SL8022113R, SL8022114R, SL8022115R, SL802431L, SL802431R, SP692234, SP692235, SP692311, SP692485, SP692486, SP692644, SP692645, SP692698, SP818471, SPI-818471, SPI818471, T4DS1289, TDAA3144D550, TDAR230070, TDAR230072, TDAR230073, TDAR230104, TDAR230105, TE12001, TE12003, TE12004, TE12011, TE12935, TE12937, TE12938, TE12969, TE12970, TE2021, TE2022, TE2041, TE2042, TE2043, TE2043. TE2044, TE2044, TE2349, TE2350, TE2453, TR2040R, TR2041L, TR2090L, TR2091R, TR2113R, TR2114R, TR2115R, TR2202R, TR2204R, TR2209R, TR2210L, TR310228, TR310229, TR376L, TR376R, TR431L, TR431R, TRE12003, TRE12012, TRE12039, TRE12969, TRE12970, TRE2090L, TRE2091R, TRE431BRA, TRE431SRA, TRES2090L, TRES2091R, TRES2114R, TRES2115R, TRES2204R, TRES2210L, TRES3030R, TRES3031L, TRES3057, TRES376L, TRES376R, TRES431L, TRES431R, TRWDS1289, TRWES431L, TRWES431R, TW310188, TW310189, TW310228, TW310229, TW310283, TW310284, TW310396, TW310425, TWES2040R, TWES2041L, TWES2090L, TWES2091R, TWES2113R, TWES3030R, TWES3031L, TWES3033L, TWES431L, TWES431R, TWL28SV5001A18, UMTR2040R, UMTR2041L, UMTR2113R, UMTR2114R, UMTR2115R, UMTR376L, UMTR376R, UMTR431L, UMTR431R, USK-551, USK-552, V1110067, V1110068, V111067, V111068, VOA3144J296, VOA3144K297, VZ838308B, VZ839307B, VZL28SV5004D1, WA2090L, WA3030R, WA431R, WDS1289, WES431L, WES431R, X4616, X4617, XBA3144J296, XBA3144K297, Y310228, Y310229, Z111068, ZBP0818471
