Match Made Tractor Air Spring, 15 In. - APL-100143

Product Description

Air springs in semi trucks and other commercial vehicles are generally durable - as most are made from rubber; but like other truck parts, they tend to wear out over time. Air bag suspension parts should be replaced every 80,000-100,000 miles to ensure a safe and comfortable ride. Drivers noticing leaking air and reduced maneuverability should seek aftermarket air springs before it leads to trouble. When in need, turn to Match Made!

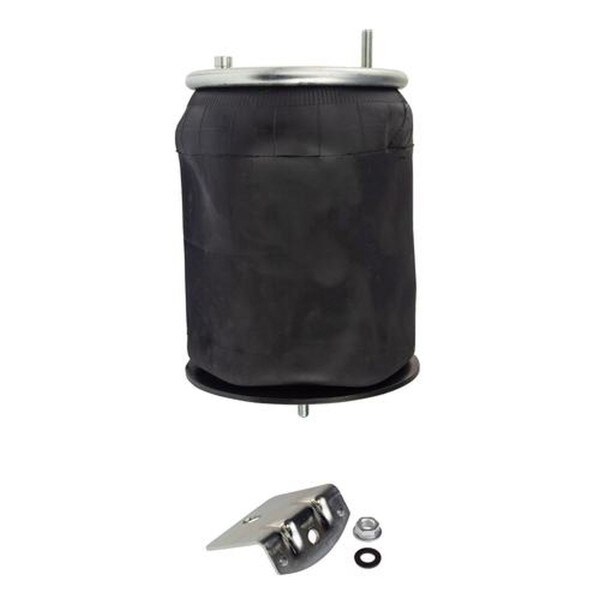

This Rolling Lobe Parallel air spring is designed for tractors. It contains an "A" bottom plate and a design height of 15 inches. Its load rating at 100 PSI is 7830 and load rating at 80 PSI is 6264. Additionally, it features a 60 natural frequency. It features a top plate diameter measurement of 9 inches with a top plate center to center measurement of 5.87 inches. Top plate holes: 2. Additionally, its bottom plate diameter measures 10 inches and a bottom plate center diameter measurement of 2.25 inches. Bottom plate holes: 1. Lastly, its height measurements are as follow: 6.1 inches (minimum) and 23.7 inches (maximum).

This Match Made safety product comes with a one year warranty.

Match Made is one of the most trusted brands in the industry for quality OEM truck parts that are reliable for all types of heavy-duty commercial vehicles. When in need of replacement air springs and air bag components, shop Match Made Parts!

Features

• "A" bottom plate
• Design height of 15 inches
• Load rating at 100 PSI is 7830
• Load rating at 80 PSI is 6264
• 60 natural frequency
• Top plate diameter measurement of 9 inches
• Top plate center to center measurement of 5.87 inches
• Top plate holes: 2
• Bottom plate diameter measures 10 inches
• Bottom plate center diameter measurement of 2.25 inches
• Bottom plate holes: 1
• Height measurements are as follow: 6.1 inches (minimum) and 23.7 inches (maximum)

Includes

Rolling Lobe Parallel air spring

Warranty

1 year

Cross Reference

1DF23I-P1067, 1DF23IP1067, 1R12 432, 1R12-1077, 1R12-432, 1R121077, 1R12432, 2514460C1, 350243C94, 352-1191, 3541731C1, 39875 KPP, 39875KPP, 42040454, 4521191L, 570 1R12432, 570 GY1R12432, 655 3541731C1, 66909, 73746, 74846, 75058, 76030, 77582, 81067, 8889, 910B1-95P889, 910B195P889, 9875, AB1DF23I-P1067, AB1DK23R-1731, AS-8889, AS-9875, AS10663, AS10673, AS1191, AS78659, AS81067, AS9875, AS9875B, ASP8890, FLT1R12432, FRL 42040454, FS1191, FS9875, FSIW013581191, GBH1R12432, GY-1R12432, GY1R12-432, GY1R12432, GYR1R12432, HDV9875, NPT 1R12-432, RC9MR18 1191, RC9MR181191, RF990918923, S-22471, U29 1R12432, W01-358-1191, W01-358-9875, W013581191, W013589875, WA01-1191, WA01-9875
