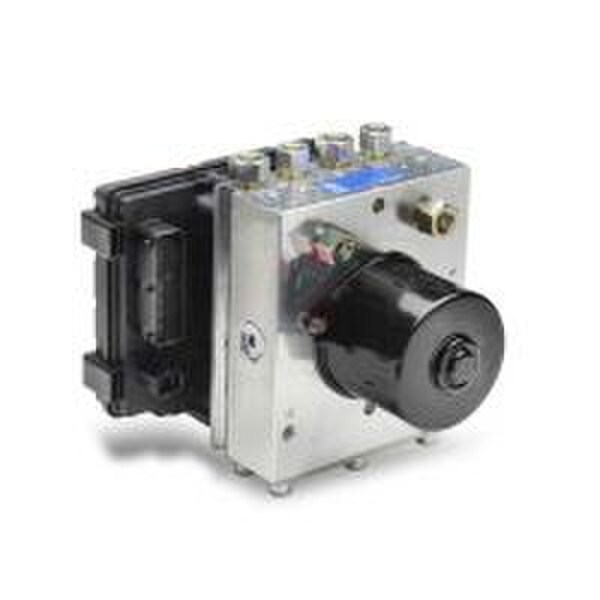

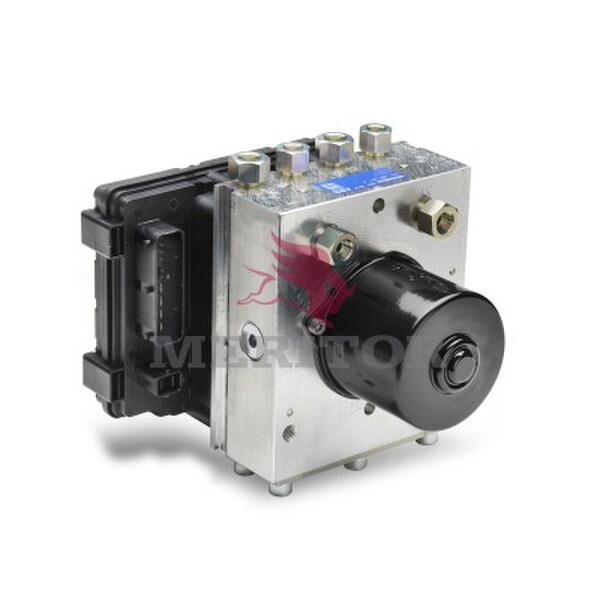

WABCO HABS ECU 12V Modulator - 4784070710 - 478 407 071 0

Product Description

ABS is an important component of any heavy-duty truck's braking system. Not only does ABS keep wheels grounded, but it helps to prevent lock-up; skidding; and losing control of vehicles.

This 12 volt modulator contains 3 x 3/8" - 16 UNC-2B mounting and a brake fluid FMVSS 116 oil inlet. It contains a calculated volume of 6.1263; a temperature range of -40°C to +85°C and a IP 6K9K protection class. Port size measurements are as follow: Port FL: 7/16" - 24 UNS-2B; Port FR: 1/2" - 20 UNF-2B; Port MF: 7/16" - 24 UNS-2B; Port MR: 1/2" - 20 UNF-2B; Port RL: 7/16" - 24 UNS-2B; Port RR: 1/2" - 20 UNF-2B.

This product's warranty may depend on type and vocation. Please contact our customer service team for more details.

For over 150 years, WABCO continues to be a global supplier of commercial vehicle technologies to maintain safer uptime in a greener environment.

Features

• 12 volts
• 3 x 3/8" - 16 UNC-2B mounting
• Brake fluid FMVSS 116 oil inlet
• Calculated volume of 6.1263
• Temperature range of -40°C to +85°C
• Port FL: 7/16" - 24 UNS-2B; Port FR: 1/2" - 20 UNF-2B; Port MF: 7/16" - 24 UNS-2B; Port MR: 1/2" - 20 UNF-2B; Port RL: 7/16" - 24 UNS-2B; Port RR: 1/2" - 20 UNF-2B

Includes

One Hydraulics ECU modular

Warranty

This product's warranty may depend on type and vocation. Please contact our customer service team for more details.

Cross Reference

6300-4784070710, S478-407-071-0, S4784070710, WAB4784070710
