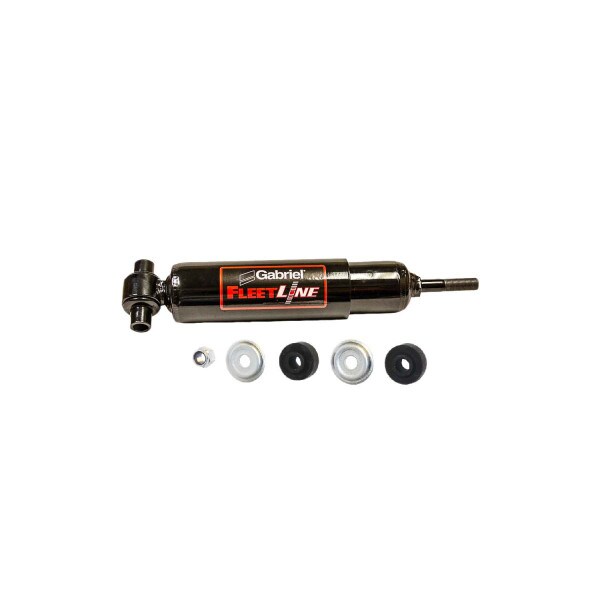

Gabriel FleetLine 85000 Series Shock Absorber - 85985

*THIS PART IS NON-RETURNABLE*

Product Description

Shock absorbers are a vital piece of any truck's suspension. They quite literally keep you grounded as a driver. Bad shocks not only lead to a bumpy ride, but can increase a truck's stopping distance as well as it's turning accuracy. Don't settle for low quality shocks and get a fresh set that fits your trucks specifications.

This Gabriel FleetLine 85000 Series Heavy Duty Shock Absorber is built with a best-in-class hydraulic stop which prevents the suspension from over-extending itself. It also contains a chromed piston rod that protects against corrosion. It delivers maximum control, comfort and durability with it's 10-stage valving. The 85000 series has forged solid steel eye rings and 360 degree arc-welded end mounts to reduce end mount failure. This specific shock absorber is 12.31 in fully collapsed and 19.04 in. fully extended. The stroke size on this shock is 6.73 in. and the bore size is 1.625 in. For Kenworth vehicle and axle applications.

This particular product comes with a 1 year, 100,000 mile warranty.

Gabriel invented the original automotive shock absorber in 1907 and haven't taken their foot off the gas since. Covering more than 96% of North American vehicle, Gabriel is where you go when you want to purchase innovative shock solutions from a brand you trust.

Features

• FleetLine 85000 Series Heavy-Duty Cab Shock Absorber
• 12.31 in to 19.04 in. Collapsed to Extended Length
• Best in class hydraulic stop prevents shocks from topping out and the suspension from over-extending itself
• Chromed Piston Rod protects against corrosion that makes for longer product life
• Delivers maximum control, comfort and durability with it's 10-stage valving
• Larger bore makes for a more durable shock in harsher operating conditions
• Forged solid steel eye rings and 360 degree arc-welded end mounts reduce end mount failures
• 6.73 in. Stroke Size
• 1.625 in. Bore Size
• 1 Year, 100,000 Mile Warranty

Includes

Includes One (1) Shock Absorber and One (1) Mounting Assembly

Warranty

1 Year, 100,000 Mile Warranty

Cross Reference

03-04628, 03-07420, 0306084PLUS, 0307423PLUS, 065523, 1083225, 1085310, 1091379, 10927, 109392, 109935, 12100007, 12100009, 12474917, 1436990185, 14QK366, 14QK366P1, 1664788C2, 2014785C92, 2014785C93, 2015556C1, 2032533C1, 2033533C1, 2039549C1, 204994R91, 210533R91, 210534R92, 210535R91, 210536R91, 210537R91, 210538R91, 21998392, 2200327C1, 25624365, 288920C91, 288921C91, 306084, 3082285, 315545, 315551, 315655, 3199937, 3199949, 3199980, 34185310, 34189423, 3501323, 3571711C1, 3571713C1, 3592131C91, 37429, 37432, 3919937, 3919949, 3919994, 3945812, 3U2Z18125CA, 40-4951, 404951, 410042, 410057, 441600, 453561C91, 453562C91, 453565C91, 453566C91, 453568C91, 453569C91, 467371C91, 467372C91, 4889426, 5002691, 5002715, 5003681, 5004872, 5005658, 510023, 53041, 5435-65107, 543565107, 553222, 57252, 57365107, 57365404, 57374409, 59011, 5U2Z18V125BS, 6067513, 650107, 650107MT, 650150, 650404, 650404MT, 65107, 65157X, 65173, 65404, 65404M, 65420, 65523, 659222, 66424, 665902, 665906, 665945, 665950, 66957, 671656, 671699, 671963, 67196340Y, 680063, 680178, 680239, 68023940Y, 680458, 680476, 680486, 69717, 69752, 700120, 700424, 70107101, 70154, 70334, 711013, 711015, 728614, 728633, 73516, 74079, 74080, 74409, 745-800257, 745800257, 78005, 78030, 800257, 800257BXW, 800257N, 800257RT, 801682, 801682BXW, 802620, 802620E, 83176230, 83214, 83217, 83225, 85013, 85044, 85058, 85310, 85316, 85332, 85333, 85336, 85902, 85937, 88982688, 8901027, 8901028, 89414, 89423, 89426, 89431, 90-1577-SP1, 90-2478, 90013787, 9015771, 901577SP1, 902291, A85310, A85316, A85937, A85985, A89423, A89424, A89426, AMS600109, AMS650107, AMS650404, AMS650420, AMS65107, AMS660109, AMS700119, AMS700120, AMS700402, AV065523, B24088, BAN800257, BBH-800257, BBH800257, BEN800257, BW065523, BW800257, BX-800257, BX800257, BX801682, C71-1013, C71-1015, C71-1015 PLUS, C71-1015A, C711013, C711015, C711015A, C711015PLUS, CAHL-409, CAHL409, CAT853, DN34185310, DN34189423, DPM65107, DPM65404, DPM74409, E65404, E74409, E7XZ18125J, E83214, E83217, E83225, E85310, E89423, E89426, ECEMN65404, EIE85310, EIE89423, EIEMN65404, EIEMN74409, EMN65107, EMN65404, EMN74409, EMNEMN65107, EMNEMN65404, EU65107, EU65404, EU74409, EUE85310, EUE89423, EUE89426, EUEMN65107, EUEMN65404, EUEMN74409, EUEMNEMN65107, EUEMNEMN65404, EUSA65107, EUSA65404, EUSA74409, F5HZ18125A, F65107, F65404, F74409, FLF65107, FLF65404, FLF74409, FLS-85310, FLS-85937, FLSD65404, FVMAE65404, FVMAE74409, GSX-89423, GSX-89426, K374-29, K374-29PLUS, K374-32, K374-7, K374-9, K374-C7, K37428PLUS, K37429, K37429PLUS, K37432, K3744, K3747, K3749, K374C7, L76117, LT74409, LTL76117, M65107, M65404, M65523, M74409, M85310, M85316, M85937, M89423, M89426, MAE65404, MAE74409, MBSA65107, MBSA65404, MBSA74409, MI65107, MI65404, MI74409, MISA65107, MISA65404, MISA74409, MN65107, MN65404, MN74409, MNEMN65107, MNEMN65404, MNEMN74409, MNEMNEMN65107, MNEMNEMN65404, MNSA65107, MNSA65404, MNSA74409, MO65107, MO65404, MO74409, MON65107, MON74409, MR74409, MS65107, MS65404, MS74409, MSEUEMN74409, MSMAE74409, N65107, N65404, N74409, NW57374409, NW65404, OTR800516, R955065157X, RC SA5310, RCSA5310, RKN20615, S-16929, S-18681, S16929, S18681, SA5310, SA65107, SA65404, SA74409, SD65404, SMR560414, SMR560419, TLA800257, TWDBEN800257, TX651097, VC85310, VC89423, WSA0085310, WSA0085316, ZAC800257, ZYWSA0085310, ZYWSA0085316
