Webb U Wheel Rotor, 16.37 Inch OD - 55035PK

Product Description

Your wheel end and brake components may be failing if you feel vibrations in the steering wheel and/or brake pedal. Failing parts, such as wheel hubs, could also be the result of weak wheel bearings that are either too old or contaminated by elements such as water or dirt. When in need of replacement wheel and brake parts for your big rig, choose to buy Webb Wheel!

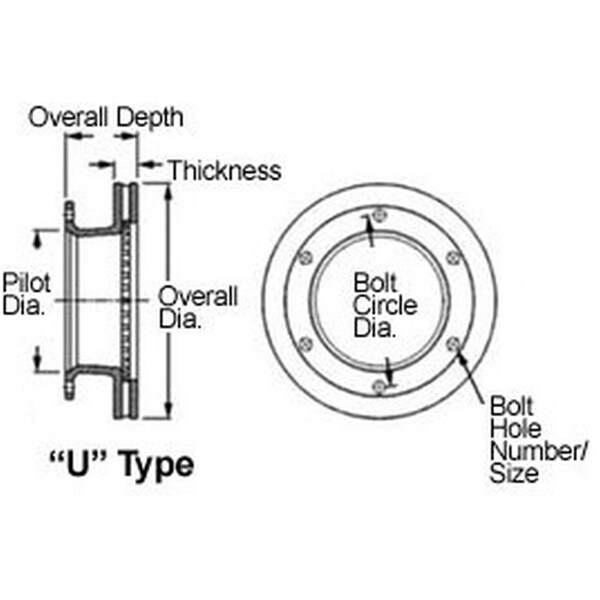

This Wheel rotor is designed for heavy-duty applications. This "U" type ABS rotor has a 16.37 inch overall dimension with a 5.91 inch overall depth. Its pilot diameter measures 8.66 inches and it has a disc thickness measurement of 1.69 inches and minimum thickness measurement of 1.46 inches. It features a bolt circle diameter measurement of 9.82 inches with 10 bolt holes that are M16 x 2 inches in size.

Length of warranty depends on product and application type. Most calipers, for example, come with a two year warranty. Contact us to learn more.

For over seven decades, Webb Wheel has been a top choice for wheel end customers; and it's no wonder why. Webb offers quality aftermarket wheel hubs, calipers and other wheel parts for all kinds of heavy-duty trucks and trailer applications at affordable costs.Webb is best known for their Vortex® brake drums; LifeShield protection products; and Air disc brakes. When looking for replacement wheel end parts for your heavy-duty everything, shop Webb Wheel!

Features

• 16.37 inch overall dimension
• 5.91 inch overall depth
• Pilot diameter measures 8.66 inches
• Disc thickness measurement of 1.69 inches
• Minimum thickness measurement of 1.46 inches
• Bolt circle diameter measurement of 9.82 inches
• 10 bolt holes
• M16 x 2 inches in size

Includes

Wheel rotor

Warranty

Length of warranty depends on product and application type. Most calipers, for example, come with a two year warranty. Contact us to learn more.

Cross Reference

153.134471, BR17D137
