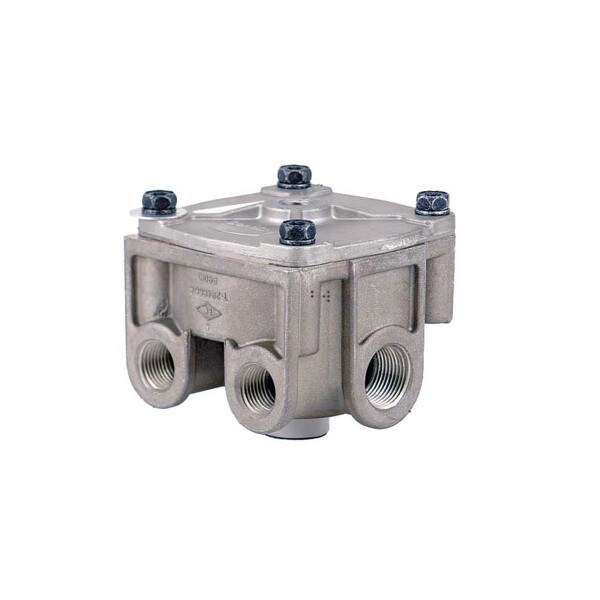

Bendix R-12 Universal Brake Relay Valve - 800366

Product Description

The unexpected can take a backseat when you have Bendix on your side. Bendix air dryers, valves and ABS parts are just what truck drivers need to keep them up-and-running.

This Bendix R-12 Air Brae Relay Valve is for heavy-duty vehicles. All Bendix R-12 relay parts are interchangeable with R-14 valve parts except the valve cover. The product helps speed up the release of the air brakes and is designed for either frame or reservoir mounting. Its usually mounted at the rear of the vehicle close to the chamber. This product contains the DuraDrain relay piston for self-draining. The Bendix R-12 relay valve offers .96 in. x .40 in. Slot (4x) mounting with 1/2-14 inch NPT supply ports. Its minimum operating temperature is -40F and its maximum operating temperature is 200F. With dust shield, it has a 1/4-18 inch NPT secondary service port and 1/2 inch delivery ports. Its crack pressure is 5.5 PSI and its TMC washer is a RV055.

Product warranty is as follows: 1 year / 12,000 miles.

Bendix Commercial Vehicle Systems have been a staple in the heavy duty truck industry, providing cutting-edge safety technology, energy solutions and air brake solutions and systems for well over a century. They've pioneered systems that are now standard on heavy duty trucks. Bendix will always look out for your truck's future, which makes them the best option for your present. Trust Bendix with your truck's future, today.

Features

• Contains the DuraDrain relay piston for self-draining
• .96 in. x .40 in. Slot (4x) mounting with 1/2-14 inch NPT supply ports
• Minimum operating temperature is -40F
• Maximum operating temperature is 200F
• Dust shield
• 1/4-18 inch NPT secondary service port
• 1/2 inch delivery ports
• Crack pressure is 5.5 PSI
• TMC washer is a RV055

Includes

Bendix R-12 Air Brae Relay Valve

Warranty

1 year / 12,000 miles

Cross Reference

065309, 065309BXW, 103009, 103009BXR, 103009BXW, 103009RX, 20QE1320, 20QE347P1, 20QE347P2, 20QE458, 289786-5, 2897865, 65309, 72201-3802, 722013802, 745-103009, 745103009, 745X103009, 767653010663, 800305, 800366BXW, 9732980050, 9732980060, 9732980070, AVKN28061, BBH-103009CX, BBH103009CX, BW800366, BX065309, BX103009RX, BX800305, BX800366, EMDKN28061X, KN28061, KN28061N, KN28061X, MBIKN28061, N30096G, N30096J, N30096L, N30096M, RKN28061, RKN28061X, ZZKN28061, ZZKN28061X
